# Zeusbot

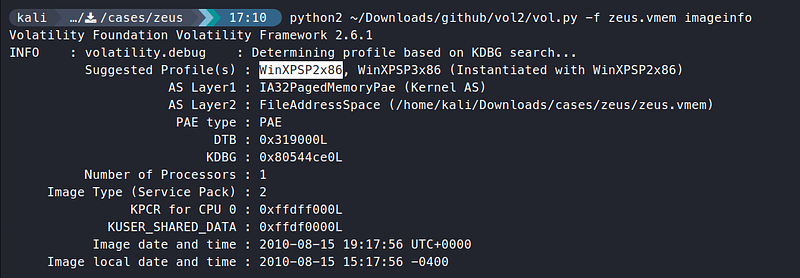

## Memory Image * Download the memory image containing Zeus malware from the below repo and unzip it. {% embed url="" %} > unzip \~/Downloads/zeus.vmem.zip *** ## Identifying the profile * As usual, we’ll start by identifying the profile of the image using `imageinfo` plugin. > python2 vol.py -f zeus.vmem **imageinfo**

* We’ll select “WinXPSP2x86” from the suggested profiles and continue. *** ## Enumerating Processes * Now that we have identified the profile of the memory image, we can start to look for suspicious activities by first listing down the processes using `psscan`. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **psscan**

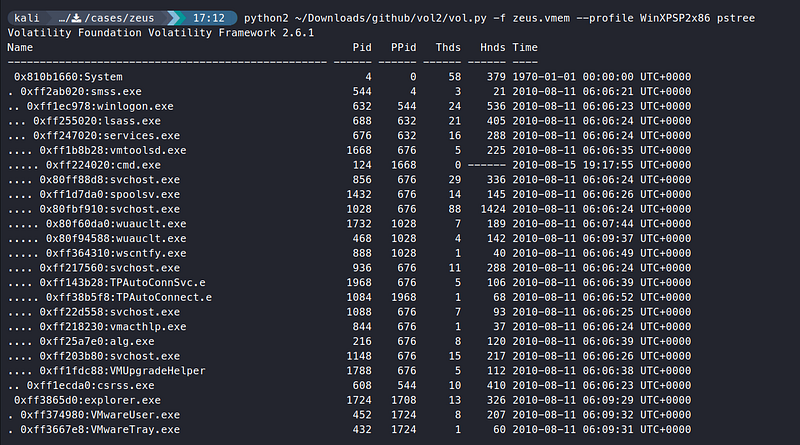

* We don’t see anything suspicious from the processes listed here as the count and names of the processes look fine. * We can try `pstree` plugin to look at the parent-child relationship. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **pstree**

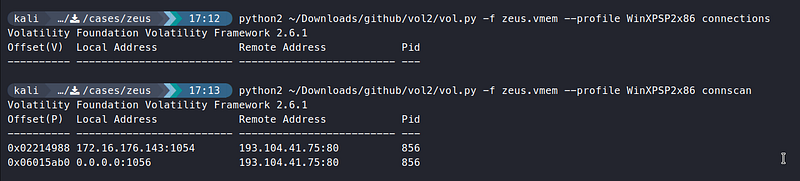

* Still we don’t find anything suspicious here. * So the names of the processes, count and parent-child relationship all look benign till now. *** ## Network connections * Another best place to look for suspicious activities is the network connections that the malicious process might have made to their Command and Control (C2) servers. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **connections** > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **connscan**

* Though there are no open connections shown by `connections` plugin, `connscan` shows that there are connections made by the PID “856”. * Let’s check the reputation of the IP address listed here using VirusTotal.

* It does look suspicious. Let’s look into this further. * Also, look at the other sections of the result page in VirusTotal and see if you can add to your suspicion about the IP address (like country details, files it is communicating and referring to). *** ## Malicious Process * Now let’s see which process was communicating with this IP address by grepping the output of `psscan`. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **psscan | grep 856**

* We can see that the process that made the suspicious network connection is “svchost.exe” of PID 856. * Now let’s look at the path of the executable using the `cmdline` plugin. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **cmdline -p 856**

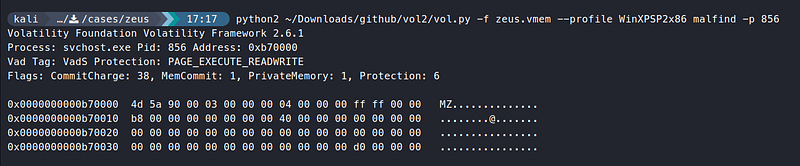

* We don’t get anything from here, as the path of the process looks legit. *** ## Code injection * Till now nothing about the process looks suspicious. Maybe the code is injected into this process. * To investigate this, let’s use `malfind` plugin. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **malfind -p 856**

* We can see that this process has `MZ` header and protection of `PAGE_EXECUTE_READWRITE`, which means that this memory region is marked as executable, and it can also be both read from and written to. * This is unusual and suspicious because it allows an attacker to execute code from that memory region and also modify its content dynamically. * In legit scenarios, memory regions won’t be executable and writable at the same time. * Let’s dump this process using `procdump` and investigate it using VirusTotal. > mkdir procdump > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **procdump -p 856 -D procdump/**

> file procdump/executable.856.exe > sha256sum procdump/executable.856.exe

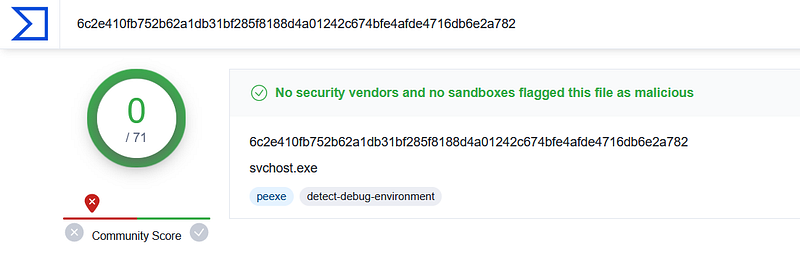

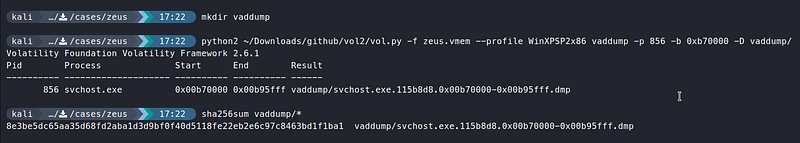

* Interesting! It is not flagged as malicious. * But this result alone should not make us conclude that this is a legit process. In fact, we saw that this process had made suspicious network communications and also we suspect code injection. So let’s not stop here. * Let’s try dumping the region of memory where we think that the malicious code is injected and analyze it. For this we can use the `vaddump` plugin and provide the PID, base address of the memory region that we suspect from the output of `malfind`. > mkdir vaddump > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **vaddump -p 856 -b 0xb70000 -D vaddump/** > sha256sum vaddump/\*

* Alright! Our guess was not wrong. This memory region is indeed malicious confirming code injection. Okay, now we have a process that has malicious code injected into it and is contacting an IP address that is flagged as malicious. Let’s investigate further and see if we can gather some more IOCs. *** ## Persistence * Let’s try searching for persistence mechanisms that a malware commonly uses. * Some of the common registry keys that malwares use for persistence are Run, RunOnce keys, Winlogon keys, Startup keys, Services keys etc. * We can use a plugin called `winesap` which will go through and list all the AutoStart Extensibility Points (ASEP). Link to the plugin [here](https://github.com/reverseame/winesap). * But I went through the keys one by one using the `printkey` plugin. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **printkey -K “Microsoft\Windows\CurrentVersion\Run”** > python2 vol.py -f zeus.vmem — profile WinXPSP2x86 **printkey -K “Microsoft\Windows\CurrentVersion\RunOnce”** > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **printkey -K “Microsoft\Windows NT\CurrentVersion\Winlogon”**

* In the “Userinit” value of the Winlogon key, we can see an unusual file “sdra64.exe” located in the system32 directory. * The “Userinit” value typically points to “userinit.exe”, which is responsible for initializing the user environment and loading the user profile during the logon process. * By adding the path to the existing Userinit value, it maintains persistence. *** ## Malicious files * Let’s look further at the file by dumping it using the `dumpfiles` plugin and investigating in VirusTotal. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **filescan | egrep -i sdra** * Using `filescan` plugin and grepping for the suspicious file name, we can obtain the physical offset of the file object, which we can provide to `dumpfiles`. > mkdir filedump > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **dumpfiles -Q 0x00000000029d9b40 -D filedump/** > sha256sum filedump/\*

* We can see that VirusTotal has flagged this file as malicious. *** ## Another malicious process * If we look closely at the output of `filescan`, the 3rd column displays the number “1”. This means that there is 1 handle to that malicious file object (which is malicious as we confirmed now). * It’d be interesting to know which process has a handle to this malicious file. We can find this out using the `handles` plugin and grepping for the malicious file. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **handles | egrep -i sdra** * We can see that the PID 632 has a handle to the file “sdra64.exe”. Grepping for that PID from the output of `psscan`, we can see that this process is “winlogon.exe”. > python2 vol.py -f zeus.vmem — profile WinXPSP2x86 **psscan | egrep 632**

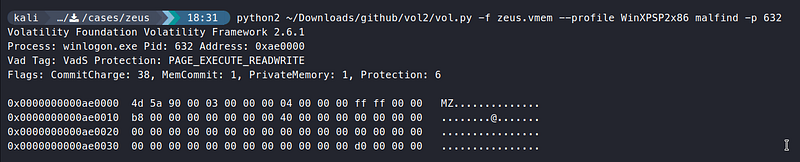

* Now we see another process that might have injected code in it. Let’s dig in further. > python2 vol.py -f zeus.vmem —profile WinXPSP2x86 **malfind -p 632**

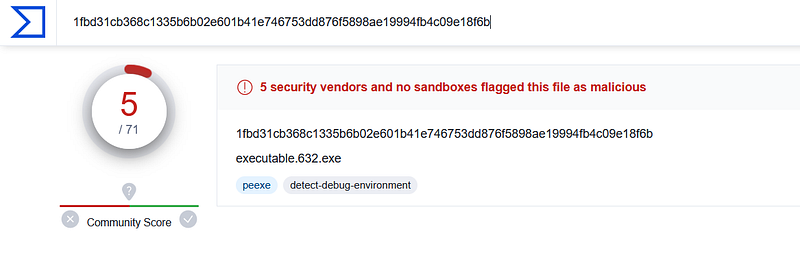

* Using `malfind` plugin, we can see the memory region with `MZ` header and with `PAGE_EXECUTE_READWRITE` protection. This definitely does not look good. * Let’s dump the process and look for it in VirusTotal. > python2 vol.py -f zeus.vmem — profile WinXPSP2x86 **procdump -p 632 -D procdump/** > sha256sum procdump/executable.632.exe

* VirusTotal flags this as malicious and now we have another malicious process. *** ## Mutual exclusions * Since we have multiple malicious processes, we can look for Mutexes that the malware might have created to ensure that only one instance of it is running at a time. * We can use the `handles` plugin, specifying the object type as `Mutant` and providing the PID. > python2 vol.py -f zeus.vmem — profile WinXPSP2x86 **handles -t Mutant -p 632**

* From the output, the Mutant “\_AVIRA\_2109” looks suspicious by its naming pattern and searching for it online, we can confirm it. * I thought it’d be interesting to also look at the handles of “svchost.exe” for any mutex and indeed it has one similar mutex named “\_AVIRA\_2108” > python2 vol.py -f zeus.vmem — profile WinXPSP2x86 **handles -t Mutant -p 856**

Now that we have gathered some IOCs, let’s start listing them down. *** ## Indicators of Compromise (IOCs) The presence of Zeus or Zbot can be identified with the help of the below IOCs. **C2 connection** * 193.104.41.75 **Processes with injected code** * svchost.exe * winlogon.exe **Registry entry** * **Key**: HKEY\_LOCAL\_MACHINE\Software\Microsoft\Windows NT\CurrentVersion\Winlogon \ **Value**: Userinit \ **Data**: C:\WINDOWS\system32\sdra64.exe **File** * **Name**: sdra64.exe \ **Path**: C:\WINDOWS\system32\sdra64.exe \ **Hash**: b38783113eda00bbe864d54fda9db97e36ee9fc8e4509e3dc71478a46250f498 **Mutexes** * \_AVIRA\_2109 * \_AVIRA\_2108 *** ## Summary We analyzed the memory dump containing Zeus/Zbot malware using the Volatility framework. We identified a suspicious network connection made by a “svchost.exe” process which had malicious code injected into it. Then we found a file named “sdra64.exe” used for persistence and it had a handle to “winlogon.exe” which also had malicious code injected into it. Finally, we found some Mutexes used by these processes and listed down the IOCs. *** If you like my work, consider supporting me: [BuyMeACoffee](https://bmc.link/neerajcysec)
